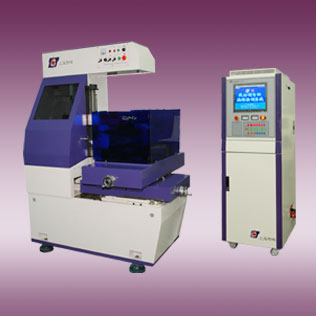

TL4032



Shanghai TeLue  High Accuracy Molybdenum Wire EDM

1  High Cutting Speed:  Intelligent high voltage cutting technology, with cutting speed of up to 300mm²/min, allowing for multiple cuts, with 1 cut 2 skim at a maximum speed of 7000mm²/hr, making this machine faster than most brass wire EDMs.

2  High Accuracy: 1µm close loop linear glass scale with a maximum cutting accuracy of ±3µm.

3  Low Surface Roughness:  Die steel material => Ra< 0.6µm; Tungsten Carbide => Ra< 0.5µm.

4  High Accuracy Center and Edge Pickup of ±6µm.

5  Long life diamond guide lasting up to, over 2 years.

6)  Machine table movement by Taiwan Hiwin linear rail, high accuracy ball screw ensures long term machine accuracy.

7)  Automatic and manual controlled multiple wire rotation speed to accommodate different cutting needs, allowing for easy wire changing and better multiple cutting.

8)  Computer controlled operations, dual CPU structure, HF easy all-in-one programming, high noise resistance allowing for a very stable operating system.
9)   Environmentally friendly half-enclosure structure providing for a clean and quiet working environment.
10)  Long life, environmentally friendly TeLue TLC coolant lasts up to 6months.  The use of a filtration system keeps the machine clean and prevents against blockage in the water ducts.

11)  Touchless wire transport structure allows for smooth rotation direction change. ???

12)  Large taper cutting structure with tension provides accuracy large taper cutting.

13)  Optional aluminum cutting function protects carbide contacts from wearing out quickly and solves the problem of low cutting speed during aluminum cutting.



TL4032

Working Table Travel (mm)

X * Y

400 * 320

400 * 320

400 * 320

U * V

60 * 60

80 * 80

140 * 140

Maximum Cutting Thickness (mm)

280

280

480

Taper (±˚/mm)

± 10˚/80mm

± 18˚/80mm

±30­˚/50mm

Maximum Cutting Speed (mm²/min)

300 (Average Cutting Speed > 160)

Surface Roughness (µmRa)

< 0.8

Molybdenum Wire Diameter (mm)

Ø 0.10 – 0.20

Wire Rotation Speed (m/sec)

3, 6, 8, 12

Coolant

Moly Wire EDM Specially Formulated Coolant: TLC – 206 (1:3); NanGuang: I (1:20); NanGuang: II (1:20); DX: I (1:10); DX: II (1:16)

Maximum Cutting Amperage (A)

10

Main Power Voltage (V)

3-380 V

Totally Power Usage (KVA)

2.5 KVA
